VISION MIXER HIRE

DV Camera hire hold a number of vision mixer to rent. We hire small basic vision mixer that have 4 x inputs and can be either HDMI or composite or we have larger mixer for SDI capabilities. Simple to use - a small vision mixer can be great to easily cut between a few cameras and a laptop output. Perfect for corporate events, concerts or live streaming. Some mixers have built-in audio mixers so there is no need to add an external audio mixer - simply plug your camera outputs and start mixing live.

Roland's V-1HD 4 x HDMI Input Switcher is a portable solution for HD video production that has four HD inputs. The inputs each have a frame buffer/TBC so that you don't need to Genlock your input sources together. Select your resolution and switch between your four input sources. Built into the switcher is a 12-channel audio mixer, which can de-embed and embed audio signals from HDMI.

The integrated T-fader allows you to manually control the speed of transitions, or you can use the take button to actuate your selected transition. The unit features a program and multi-view preview output as well as an analog audio input and output. Though small in size, it allows you to perform picture-in-picture, green-screen, and other keying effects, and a transform control enables advanced video effects on your footage.

4 HDMI Inputs with Frame Buffers

Hardware or PC Control

12-Channel Digital Audio Mixer

Manual T-Bar

Program Output and Multi-View Preview

Picture-In-Picture, Green-Screen Keying

Advanced Video Effects

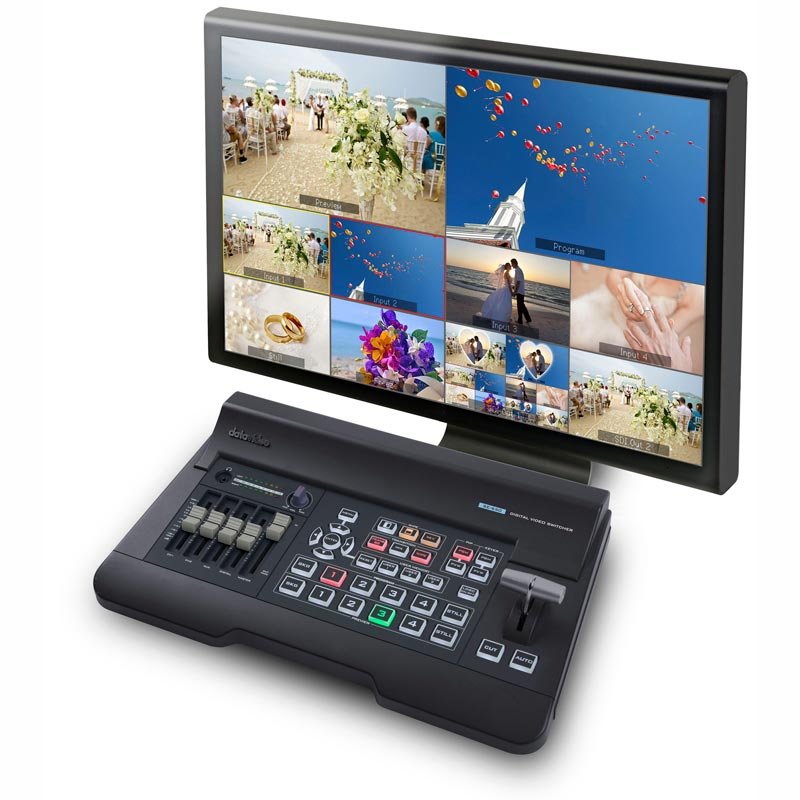

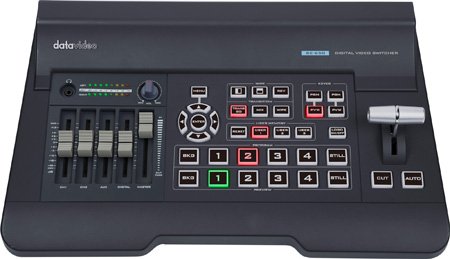

The Datavideo SE-650 is a small, cost effective, professional HD digital video switcher.

It offers two HD-SDI and two HDMI inputs that support video formats up-to 1080i.

It features two HDMI outputs and a user assignable HD-SDI output.

The SE-650 is the perfect device for small scale video production using professional cameras and HDMI equipment. The SE-650 also features an audio mixer with microphone and unbalanced RCA audio inputs.

Advanced tools include Chromakey, Luma key, PiP, wipe generator, still store and tally

4 Input HD digital video switcher

Inputs: 2 x HD-SDI x 2 | 2 x HDMI

Outputs: 1 x HD-SDI | 2 x HDMI

Any Input can be used as a Frame store (Stills Store)

Assignable Outputs: Program (w/ DSK) | Clean Program (w/o DSK)

Clean Preview (w/o DSK) | Multiview

Frame Sync on each input

Flexible Mix/Effects Processor with 1 Upstream Keyer, supporting Chromakey & Linear/ Luma Key

1 Upstream PIP, supporting Chromakey & Luma Key

Wipe Generator: 32 Wipe Patterns, including Circle & Heart - Borders & Softness Control

Full M/E Preview function

Logo insertion (Animation logo, X/Y size)

XPT (Cross Point Assignment)

Tally Output

6 Channel Audio Mixer

Audio inputs: 2 x RCA Analogue (L/R) | 2 x Microphone

Audio outputs: 2 x RCA Analogue (L/R) | 1 x Stereo headphone mini Jack

Audio em-bedded function

Multi-language support

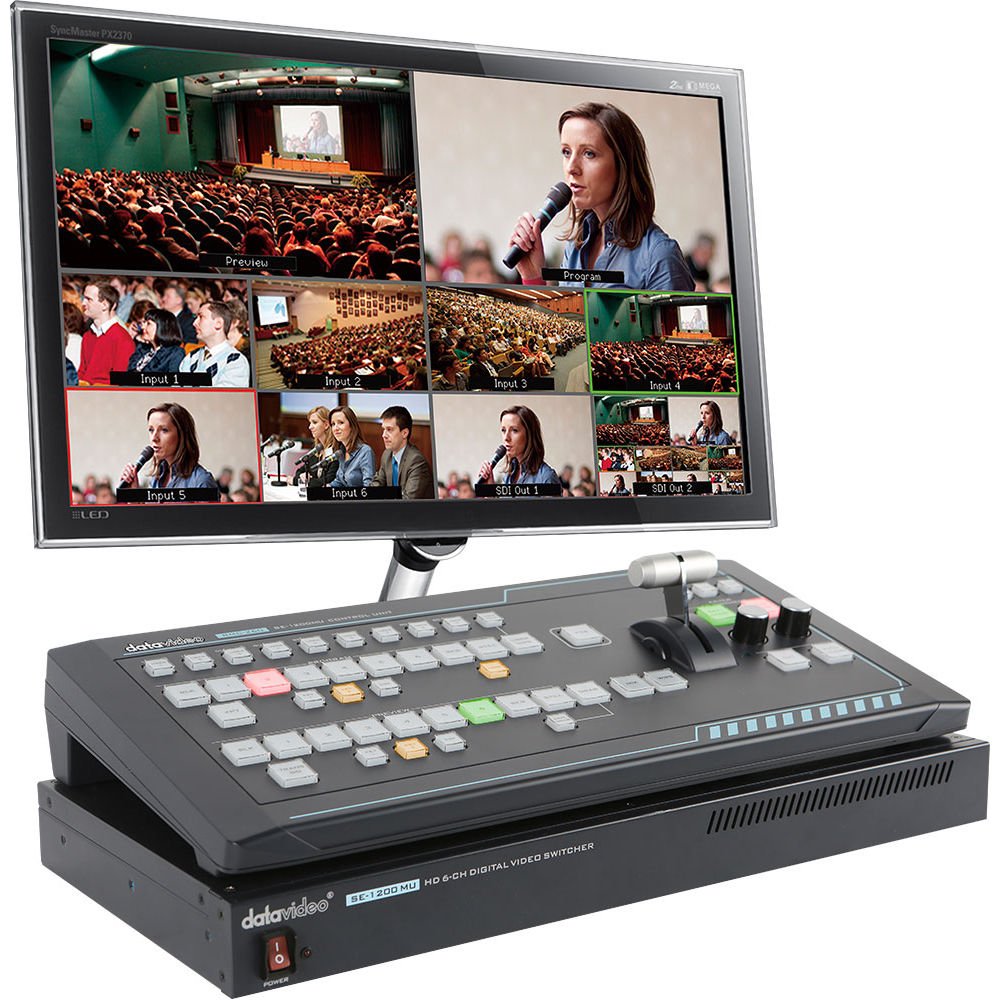

If you are filming a seminar or conference, a live outside broadcast or shooting inside a production studio, the Datavideo SE-1200MU HD video switcher allows you to switch seamlessly between video sources and mix digital content on the fly. SE-1200MU a small, portable computer controlled 1RU rack mountable switcher. It features a 6-Channel HD video that is incredibly reliable, unlike PC-based systems that are prone to crashing mid production. SE-1200MU streams out multi-view screen video in real-time to a control PC for monitoring and control remotely. It is designed to be fully controlled from any Windows Laptop / PC and Android tablet / iPad / Mac with the included SE-1200 software control panel. SE-1200MU includes 4 x SDI and 2 x HDMI inputs with embedded audio and an internal frame synchronizer so you can use sources without gen-lock such as consumer HDMI cameras or even computers for live PPP presentations. Two assignable SDI and two HDMI outputs for connecting an HD recorder, monitor and a streaming encoder, plus two Balanced XLR audio inputs for connecting an external audio mixers. Other features include chromakey, lumakey, DSK, PIP, still stores, audio delay, tally and RJ-45/RS-232 remote control interface.

Flexible Mix/Effects Processor with

2 Upstream Keyers, supporting Chroma Key & Linear/Luma Key

2 DSK, supporting Linear & Luma Key Modes

1 PIP (assignable to any of the 4 keyers

Wipe Generator: 32 Wipe Patterns, including Circle & Heart | Borders & Softness Control

Wipe, Mix & Cut Transitions

Full M/E Preview function

Any (1-6) can be used as a Frame store (Stills Store): Upto 24 images stored on SD Card

Assignable Outputs

Each SDI output can be switched in the Menu as: - PROGRAM (w/ DSK) - Clean PROGRAM (w/o DSK) - Clean PREVIEW (w/o DSK) - MULTISCREEN - 1-6

XPT (Cross Point Assignment)

PC & Tablet control

Remote streaming of Multi view out using built-in Motion JPEG Streaming processor

Tally output

GPI output

1U rack mount

If you need technical help on the day or a camera operator, please speak to us about us helping you out on your shoot. We have staff of all technical levels that can assist on your days shoot from just setting up the cameras through to filming the entire day.
